INSTRUCTION MANUAL

SAFETY INSTRUCTIONS

• Ensure that the supply is AC and the Voltage is as per the specification printed on the name plate.


• There are no consumer serviceable parts inside this fon. Do not attempt to open/repair the fan on your own, doing so could cause damage to the fan and/or lead to personal injury.


• Use wire connector for wire joints not just tope.


• Ensure that the height of the fan from the ground should be more than 2.3m when it is installed.


• Ensure that the distance of fan blade from wall of the room should be more than 1.5m when it is installed.


• This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety


• Children should be supervised to ensure that they do not play with appliance.

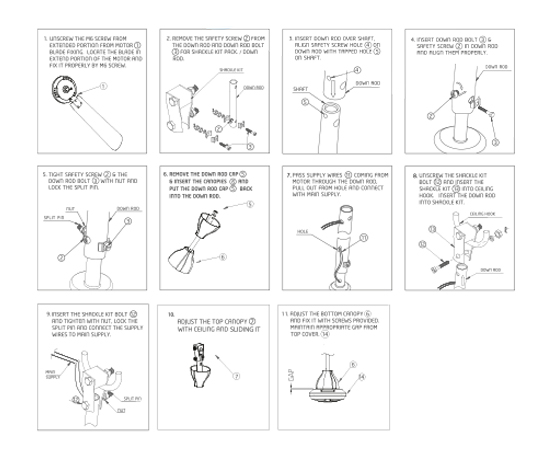

INSTALLATION INSTRUCTIONS

CAUTION

never open or try to loosen screws on the base plate.

CLEANING/MAINTENANCE INSTRUCTIONS

• To clean the fan, wipe it with a soft and clean cloth.


• Do not apply pressure on the blades in order to prevent them from deformation/breakage.


• If servicing is required, refer only to a qualified electrician.


• For oiling use ALFA ZA 320 oil and for greasing use grease.
